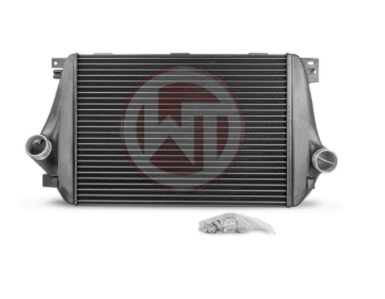

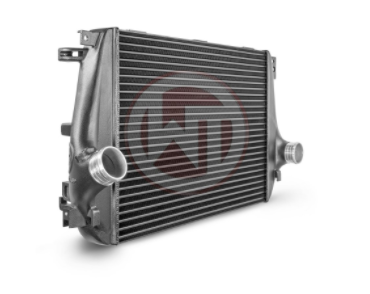

Wagner Tuning intercooler kit Volkswagen Amarok 3.0TDI

COMPETITION INTERCOOLER KIT for VW Amarok

VW Amarok 3,0TDI (120KW/163PS) 2017+
VW Amarok 3,0TDI 4Motion (150-190KW/204-258PS) 2016+

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 590 mm x 425 mm x 65 mm / 23,2 Inch x 16,7 Inch x 2,56 Inch, which was developed especially for the requirements of the VW Amarok. This high-performance core offers 81 % more core volume compared to the stock intercooler.

The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

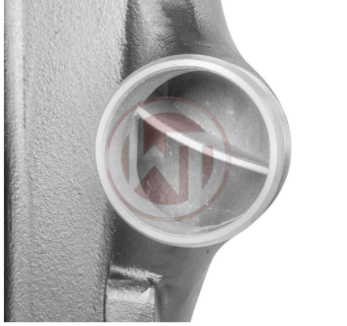

Inlet diameter: Ø60 mm/2,36 Inch ; Outlet diameter Ø60 mm/2,36 Inch

Dimensions stock intercooler:
620 mm x 415 mm x 35 mm / 24,4 Inch x 16,3 Inch x 1,4 Inch
V = 9,0 L / 549,2 Inch³
A = 2573 cm² / 398,8 Inch²

Dimensions WAGNERTUNING intercooler:
590 mm x 425 mm x 65 mm / 23,2 Inch x 16,7 Inch x 2,56 Inch
V = 16,3L / 994,7 Inch³
A = 2507 cm² / 388,6 Inch²

kit comes with:
1 intercooler
1 mounting material
1 installation instruction
